雙色打印機1+1
產品介紹
雙色標簽打印機，打印2種顏色，正面一種顏色，反面一種顏色。

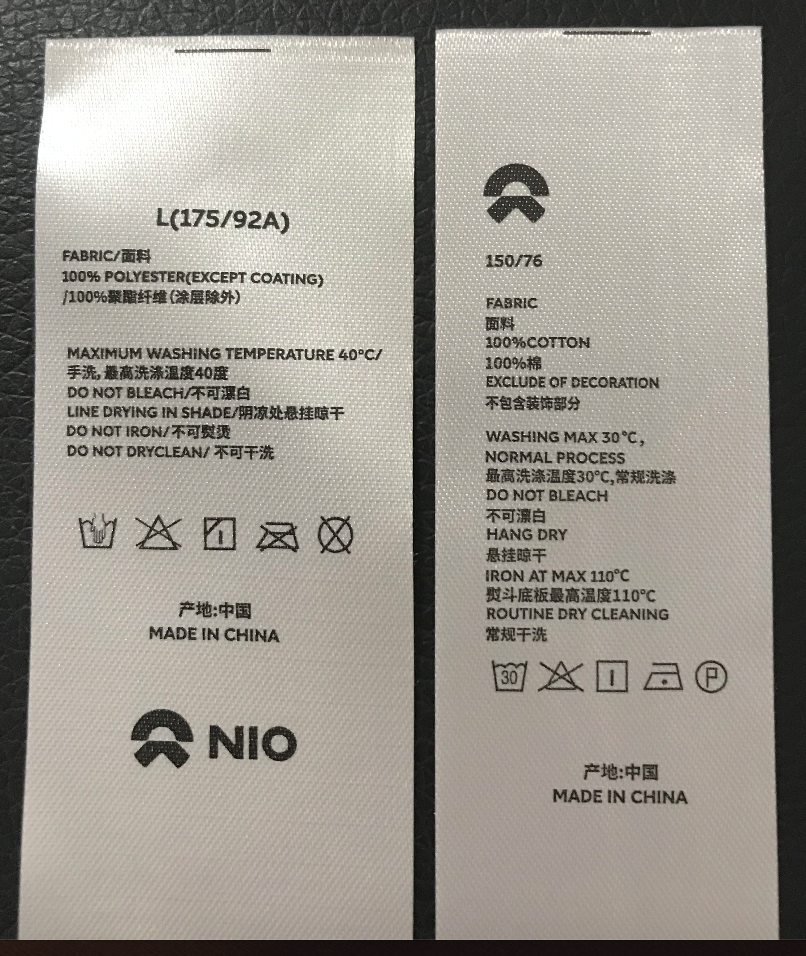

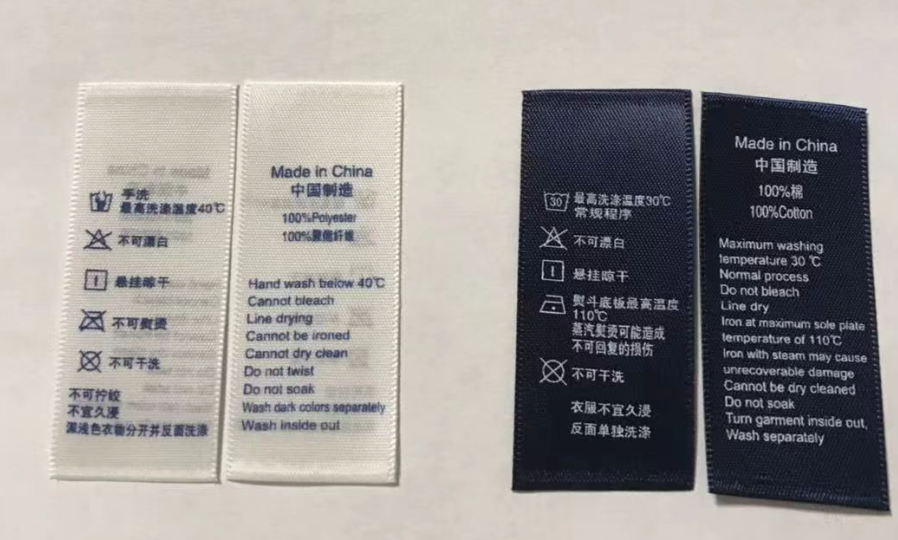

適用范圍：服裝水洗標簽，膠帶，緞帶，尼龍，織帶等標簽材料。
切刀配置：可選配 標準機械切刀，超聲波切刀。
打印速度快/精度高 最大200mm/秒，305dpi
當前機型：：雙面二色打印方式（表1色/底1色）
可選機型：雙面三色打印方式（表2色/底1色）
| Type name | GR-200W |
|---|---|
| Product category | Care Label Printer |
| Printing technology | Thermal transfer printing system Two-sided two-color printing method |
| Type of thermal Head | Edge printing thermal print head |
| Printing density | 305dpi (12dot/mm) |
| Printing speed | 75mm/sec, 100mm/sec, 125mm/sec, 150mm/sec, 200mm/sec |
| Max. printing width | 52mm |
| Max. printing length | 400mm |
| Label width | 15 to 50m |
| Label length (Height) | Max. 200m |
| Max. label roll diameter | 250mm |
| Ink ribbon | Thermal time type |
| Ink ribbon width | 30mm / 40mm / 50mm |
| Ink ribbon length | 250m / 400m |
| Printing system | Printing with 2 Heads, on Windows Driver (for Windows 7/8/10 32/64bit) |
| Peripheral interface | USB2.0 10BASE-T/100BASE-TX |
| Keyboard | "Feed" Key (for 1 Label Feeding), "Restart" Key, "Stop" Key (for Temporal Stop/Release from Error Status) |
| LED display | POWER / ONLINE / ERROR |
| Power supply | 100 V AC/240 V AC, 50/60Hz |
| External dimensions | 702 x 317 x 396 (W/D/H) |
| Mass | 23Kg |
| Standard issue software | Printing condition setting tool |
| Function | Head disconnection check Ink ribbon save |
| Optional unit | Ultrasonic cutter Static eliminator |
